JR/VMC/001

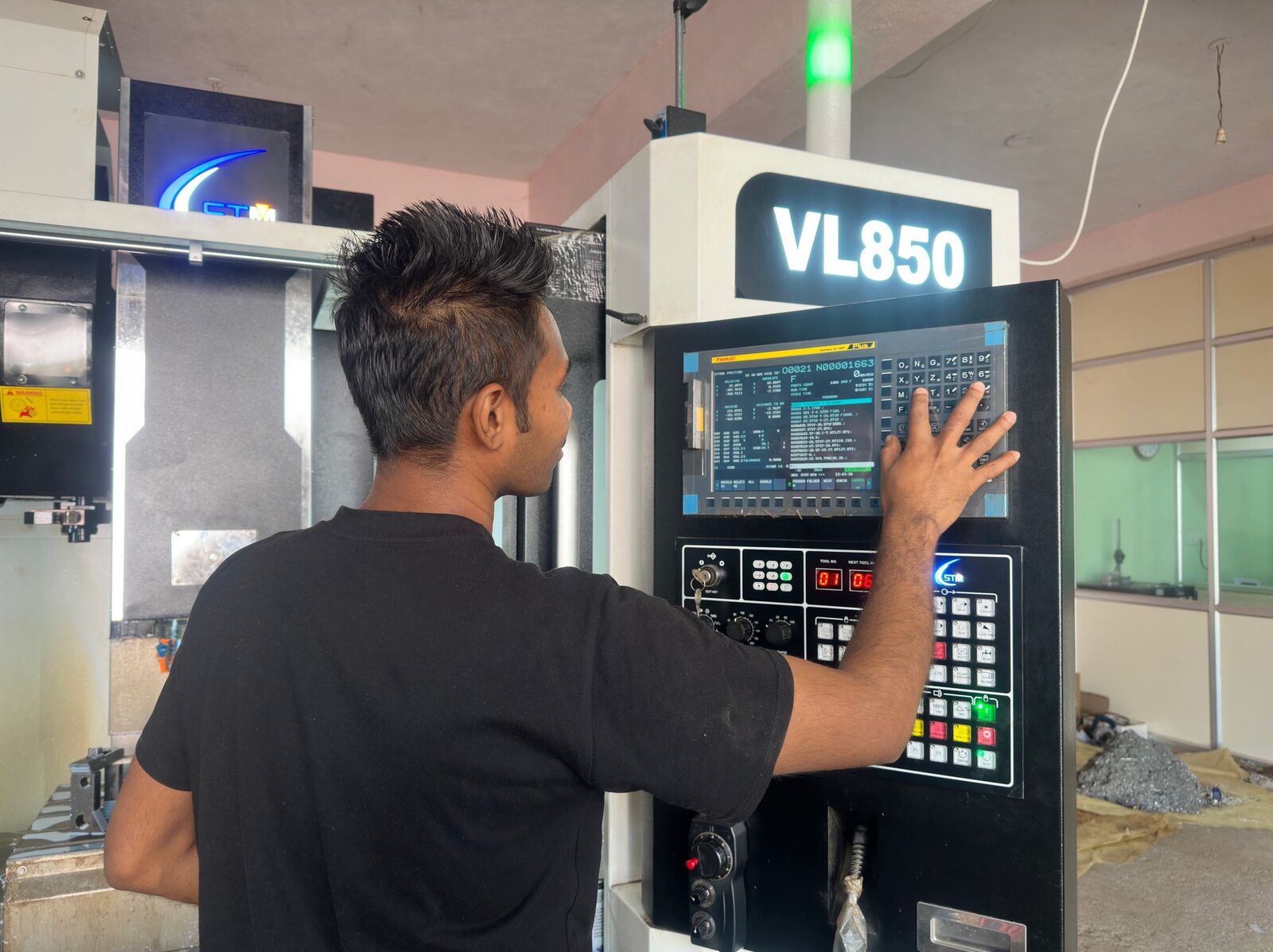

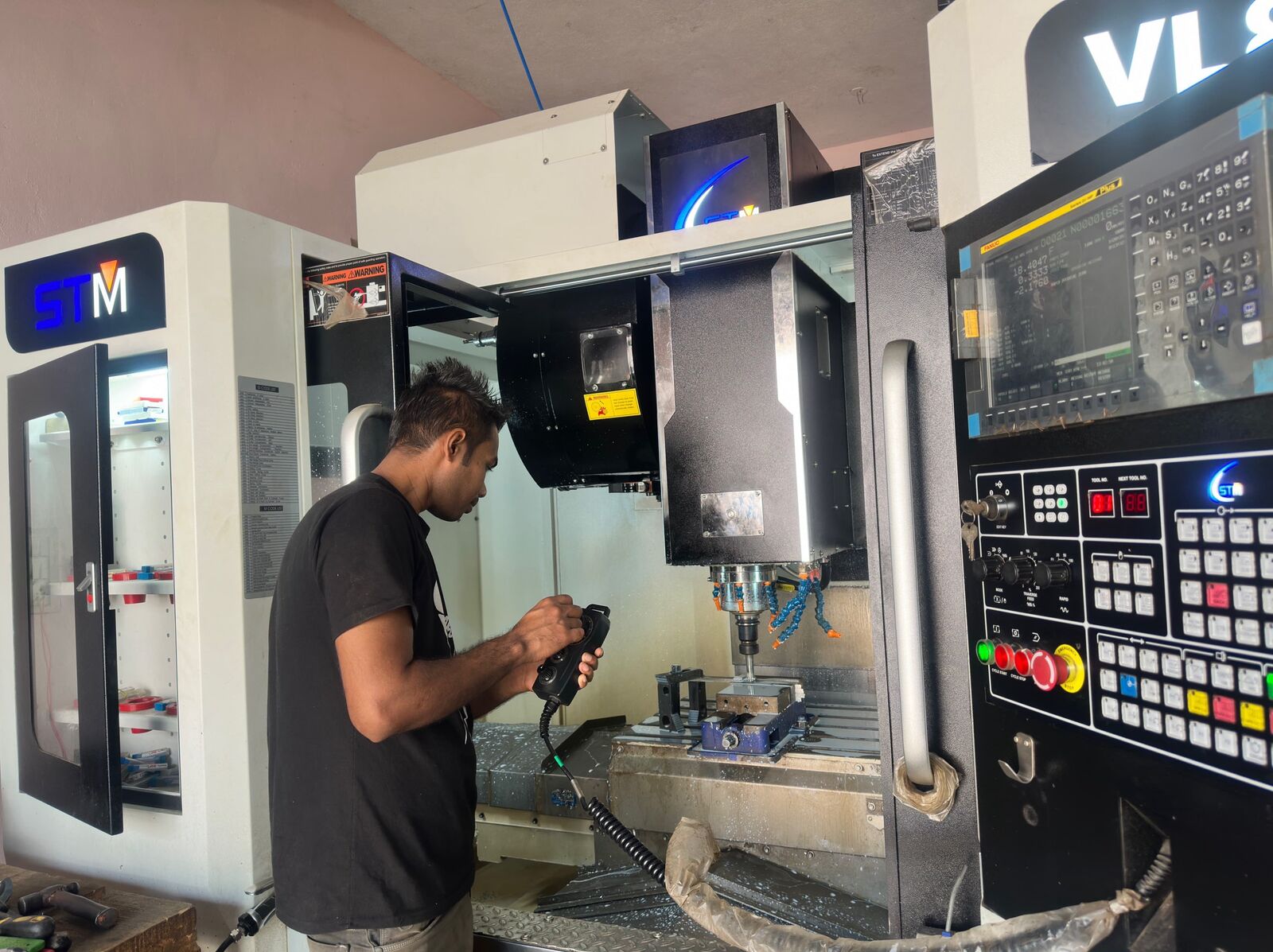

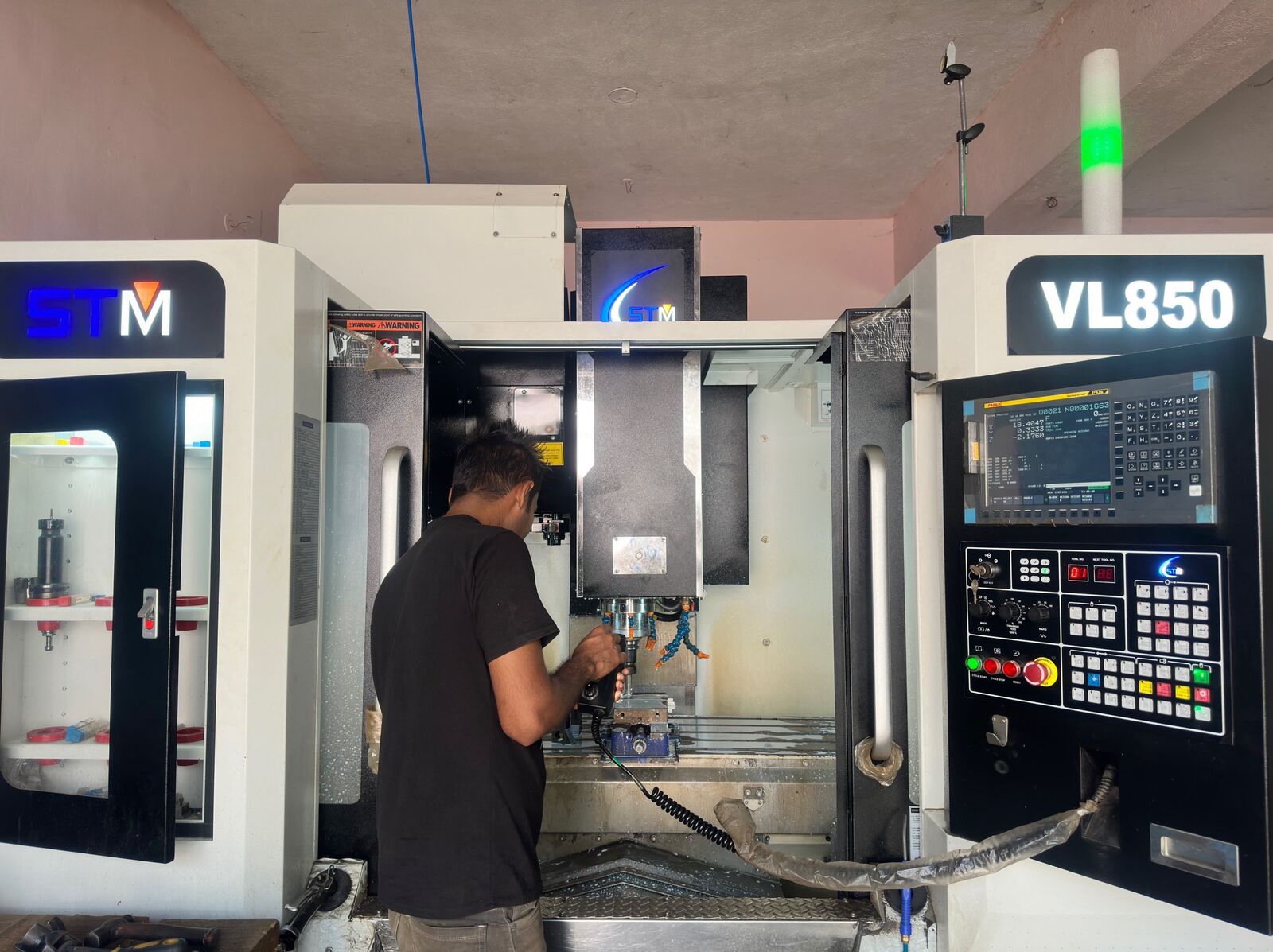

STM VMC – VL 850
Vertical Machining Centre
Our workhorse vertical machining centre, built for heavy-duty production machining, die moulding and tool room work with export-quality surface finish.
Machine Features
- High Precision Machining
- Automatic Tool Changer
- Rigid Cast Iron Structure
- Flood Coolant System
- Die & Mould Machining
Travel
- X, Y, Z Travel
- 850 mm / 510 mm / 510 mm
- X, Y, Z Ball Screws
- C3 40 mm
- Spindle Nose to Table Surface
- 140 mm – 650 mm
- Spindle Centre to Telescopic Cover
- 524 mm
Table
- Table Size
- 1000 mm × 500 mm
- T-Slot (size × qty × distance)
- 18 mm × 5 × 100 mm
- Max Table Load
- 800 kg
Accuracy (VDI-DGQ-3441)
- Position Accuracy
- ±0.005 mm
- Repeatability
- ±0.003 mm
